  • product type:
  • vaporizing fog machine
  • power:
  • 720 Watt
  • voltage:
  • 12 V DC (battery operated)
  • heat up time:
  • < 2 seconds
  • standby-time:
  • 3 month (with 6300mAh battery)
  • fluid consumption:
  • 20ml/min
  • fluid tank capacity:
  • 55ml
  • control:
  • ignition, activate, trigger (low or high active)
  • outputs:
  • status, error, external equipment
  • bus interface:
  • for fluidsensor and smart-battery
  • programming:
  • with PC over USB
  • fog time:
  • programmable up to 2.5 minutes with 55ml cartridge
  • pause time:
  • programmable
  • logbook:
  • 64 temporary entries
    64 permanent entries
  • size (L x W x H):
  • 228 x 175 x 68,2mm
  • weight:
  • 1400g

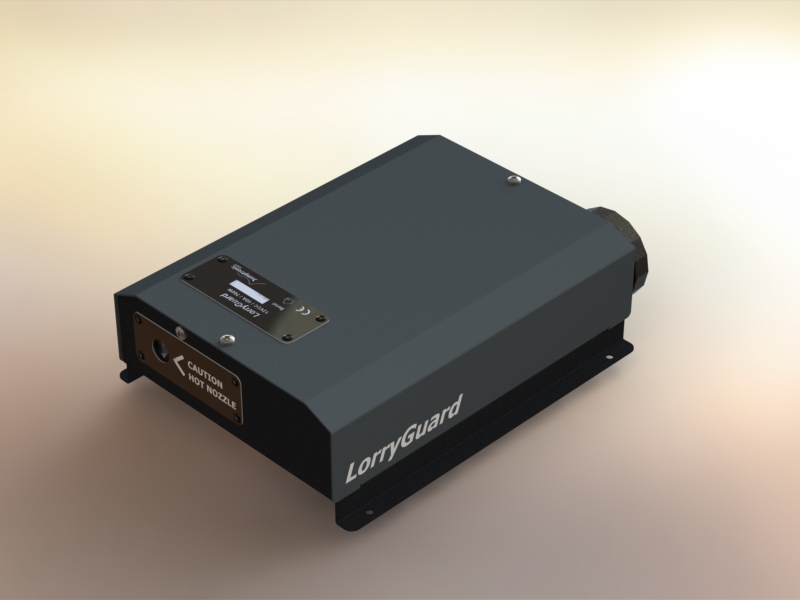

    The LorryGuard is a powerful, battery-operated security fog machine for installation in craftsman vehicles, security vans, campers, yachts, containers or contruction machines. The unique vaporizer technology heats up within two seconds und produce dense white fog, while the power consumption in standby-mode is very low. Up to 3 month standby-time without charging (used with LorryGuard batterypack). The compact size light weight (1.5 kg) makes the LorryGuard versatile, allowing for installation in many different places. Various in- and ouputs can by used for connecting the LorryGuard to an alarm system, or use it as a standalone machine. The fluid cartridge is filled with 55 ml of high concentrated fog fluid, which produces very dense harmless fog. The cartridge can be easily mounted into the machine and is large enough for 2.5 minutes fog production. The LorryGuard can be connected to a computer to adjust all parameters and read out the internal logbook. As accessories are available a fluidsensor, a remote control and a modern lithium-ion battery. The LorryGuard is available with a horizontal adjusted output nozzle or with a vertical adjusted output nozzle.

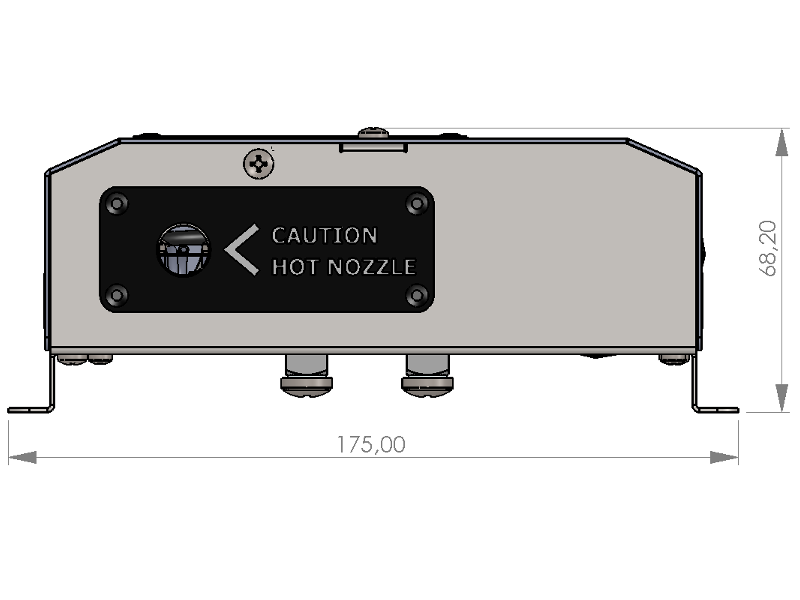

    Face view

    face view of  LorryGuard with dimensions

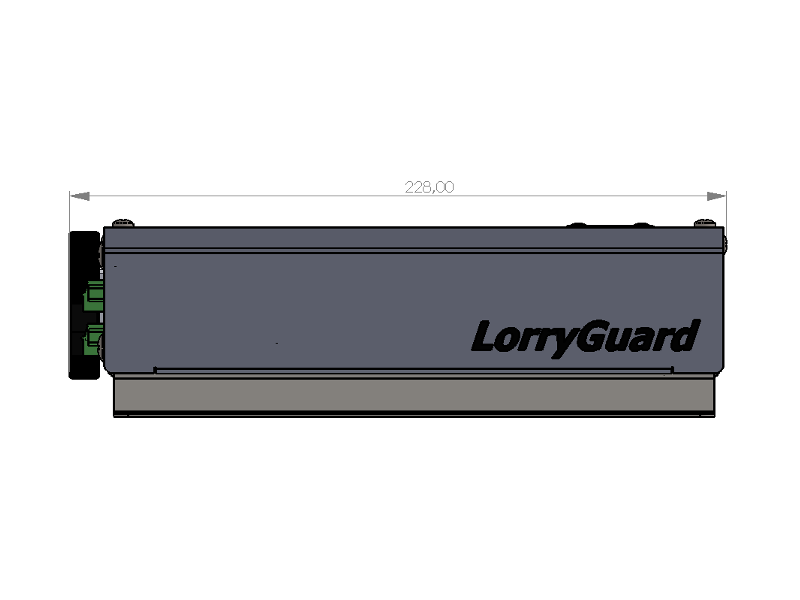

    Side view

    side view of LorryGuard with dimensions
